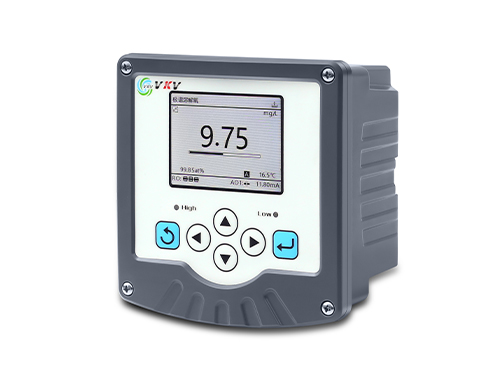

QR-DO-108 dissolved oxygen controller is combined with membrane-based dissolved oxygen controller

The outdoor waterproof and dustproof design is suitable for wall mounting, panel installation, and round tube installation.

Provide connection points for the automatic electrode cleaning device and set the program output

Equipped with a backlight sensor, featuring both automatic and manual backlight setting functions

With automatic correction; manual and automatic temperature compensation functions

Password lock and combination key for entering the setting and calibration mode design, to enhance security protection

With the RS-485 standard MODBUS communication protocol, it can be directly connected to digital systems.

AC power supply: 100V to 240VAC ± 10%, 50/60Hz

Direct current power supply: 20 - 40 VDC

Working temperature: 0 - 50℃

Instrument size: 144mm × 144mm × 115mm (Height × Width × Depth)

Protection level: Meets IP65 (NEMA 4) standard

Installation methods: Wall mounting, panel mounting, round pipe mounting

Hollow dimensions 138mm×138mm（H×W）

Weight 0.8Kg

The potentiometric dissolved oxygen electrode has a platinum wire as the cathode and an silver tube as the anode, with a chloride solution as the electrolyte. When a polarization voltage of 630 to 700 mV is applied between the two electrodes, oxygen passes through the membrane and is reduced at the cathode.

Ordering Guide

QR-DO-108

QR-DO-108-D（20~40VDC）

QR-DO-108-RS（RS-485 Output）

QR-DO-108-DRS (20 - 40VDC) RS-485 output

Electrodes and accessories

Membrane-based dissolved oxygen sensor

Supporting frame
